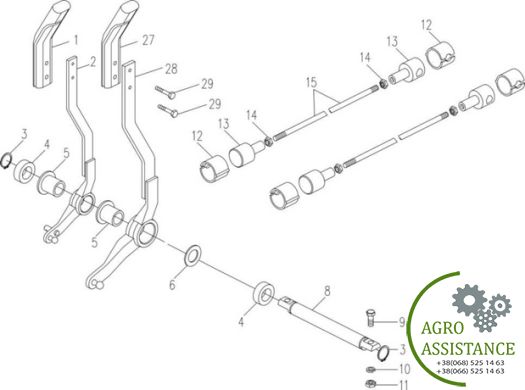

| No | Наименование | Part Name | Артикул | Qty. |
| 1 | Рукоятка | Head, handle, position control lever | SZ900.55.102 | 1 |
| 2 | Рычаг | Welded position control rod unit | 804C.55.011-2 | 1 |
| 3 | Уплотнитель | Retainer ring 21 | 11066976/12245 | 4 |
| 4 | Втулка | Spacer, pin, lever | 5127167/1.82.255B | 2 |
| 5 | Втулка | Bushing, outer lever | 5126032/1.82.262 | 2 |
| 6 | Шайба | Thickness shim, shaft, lever | 5126195/1.82.255A | 2 |
| 8 | шток | Pin, lever | 5126024/1.82.254 | 1 |
| 9 | Болт | Bolt M8x22 | GB/T5783-2000 | 4 |
| 10 | Шайба | Washer 8 | GB/T7244-1987 | 4 |
| 11 | Гайка | Nut M8 | GB/T6170-2000 | 4 |
| 12 | Обойма | Clip 13 | 10125574/13130/03 | 4 |
| 13 | Захват | Cover, spherical joint | 10124514/13130/01 | 4 |
| 14 | Гайка | Nut M8 | GB 6172-86 | 4 |
| 15 | Тяга | Control rod, lifter | 804C.55.105 | 2 |
| 17 | Болт | Bolt M6x1x16 | GB/T5783-2000 | 2 |
| 18 | Прокладка | Ball socket | 4998311/1.80.255 | 2 |
| 19 | Втулка | Ball socket | 5109058/1.80.254 | 1 |
| 20 | Гровер | Washer 6 | GB/T7244-1987 | 3 |
| 21 | Гайка | Nut M6 | GB/T6170-2000 | 4 |
| 22 | Ручка | Head, handle, regulator valve | SZ804.55.523 | 1 |
| 23 | Фиксатор | Pin 4x32 | 14164470/12213 | 1 |
| 24 | Тяга | Adjusting yoke, lowering valve | 1.82.282/5144120 | 1 |
| 25 | Шплинт | Spring pin | 889960079/1.82.283 | 1 |
| 26 | Кардан | Universal joint assembly | 885134039/1.82.283 | 1 |
| 27 | Ручка | Head, handle, lever, force adjustment | SZ900.55.101 | 1 |
| 28 | Тяга | Welded load control lever unit | 804C.55.012-2 | 1 |
| 29 | Болт | Screw M4X10 | 5113531/1.82.797C | 4 |
