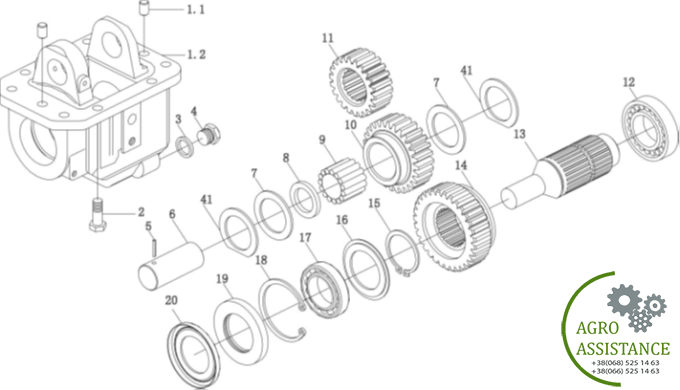

| № | Название | Part Name | Part Numberr | К-во |
| 1 | Корпус ВОМ | PTO Housing with dowel pin | 4994264/1.33.002A | 1 |
| 1,1 | Бобышка | Pin B12×18 | GB 119-86 | 2 |
| 1,2 | Корпус ВОМ | Housing, PTO | SZ1204.42.101 | 1 |
| 2 | Болт | Bolt | GB 5786-86 | 8 |
| M12×1.25×35-Zn.D | ||||
| 3 | Шайба | Rectangular cross-section seal washer | 10263420/14607 | 1 |
| 22×28×1.5 | ||||
| 4 | Сливной болт | Drain plug M22×1.5 | 10275001/14534 | 1 |
| 5 | Штифт 6 × 70 | Elastic cylindrical pin 6×70 | BZ/JHX-SZ | 1 |
| 6 | Вал | Shaft, gear, lead out device | 4994227/1.33.112 | 1 |
| 7 | Шайба | Thrust washer, idler, lead out device | 1204.42.108 | 2 |
| 8 | Шайба | Washer, needle bearing, planetary gear | 1204.42.109 | 1 |
| 9 | Подшипник | Roller bearing | 5104120/1.48.172 | 1 |
| 35,7 × 49,7 × 41 | 35.7×49.7×41 | |||
| 10 | Шестерня | Idler, PTO shaft, lead out device | 1204.42.102 | 1 |
| 11 | Привод ВОМ | Driving gear, PTO | 12043.38.109SZ | 1 |
| 12 | Подшипник NJ209E (42209) | Cylindrical roller Bearing NJ209E(42209) | GB/T283-1994 | 1 |
| 13 | Ведущий вал | Driven shaft, lead out device | 1204.42.104 | 1 |
| 14 | Ведущий вал | Driven shaft, lead out device | 1204.42.101 | 1 |
| 15 | Стопорное кольцо | Circlip 55 | 11069576/12245 | 1 |
| 16 | Сальник | Oil baffle disc, bearing, lead out device | 4994233/1.33.136 | 1 |
| 17 | Подшипник 6011E (111) | Bearing 6011E（111） | GB/T276-1994 | 1 |
| 18 | Стоопорное кольцо | Circlip90 | 11062476/12246 | 1 |
| 19 | Сальник 55 × 90 × 10, выводной вал | Oil seal 55×90×10, lead out shaft | 5129003/1.33.135 | 1 |
| 20 | Диск сальника | Oil seal disc | 4994297/1.33.145 | 1 |

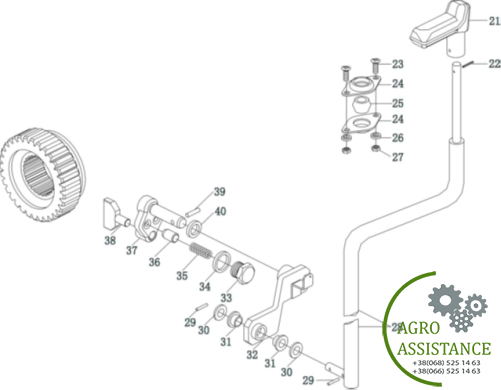

| 21 | Ручка | Handle assembly | 5136799/1.80.266 | 1 |
| 22 | Штифт | Tapping screw | GB 845-85 | 1 |
| ST4.2 × 25-F-H | ST4.2×25-F-H | |||
| 23 | Винт M6 × 14-Zn.D | Screw M6×14-Zn.D | GB 818-85 | 2 |
| 24 | Пластина | Ball socket | 4998311/1.80.255 | 2 |
| 25 | Втулка | Ball socket | 5109058/1.80.254 | 1 |
| 26 | Шайба | Washer 6 | GB 7244-87 | 2 |
| 27 | Гайка | Nut M6-6-Zn | GB 6170-86 | 2 |
| 28 | Блок управления рычагом | Control lever unit, lead out device | 1204-1.42.011 | 1 |
| 29 | Штифт | Pin 2×18 | GB 91-86 | 2 |
| 30 | Шайба | Washer10-140HV-Zn | GB 97.1-85 | 2 |
| 31 | Втулка | Bushing, outer lever | 5129442/1.80.268 | 2 |
| 32 | Кронштейн | Outer drive link, lead out device control | 5131536/1.33.234 | 1 |
| 33 | Болт | Locking screw, inner lever | 4997638/1.33.228 | 1 |
| 34 | Прокладка 14 × 20 × 1,5 | Rectangular gasket 14×20×1.5 | 10280060/14607 | 1 |
| 35 | Пружина | Spring | 4966305/1.80.841 | 1 |
| 36 | Бобышка | Locking detent, inner lever | 5112851/1.33.226 | 1 |
| 37 | Кронштейн | Inner drive link unit, lead out device control | 5101312/1.33.222A | 1 |
| 38 | Лепесток переключения | Shift block, PTO control | 885100858/1.33.237 | 1 |
| 39 | Штифт 5 × 28 | Elastic cylindrical pin 5×28 | BZ/JHX-SZ | 1 |
| 40 | Сальник | Oil seal, shaft, dowel bar | 559983/1.80.232 | 1 |
| 2,62 × 15,88 | 2.62×15.88 | |||
| 41 | Упорная шайба | Thrust washer, idler, lead out device | 1204.42.108-1 | 2 |
