| № | Название | Part Name | Part Numberr | К-во |

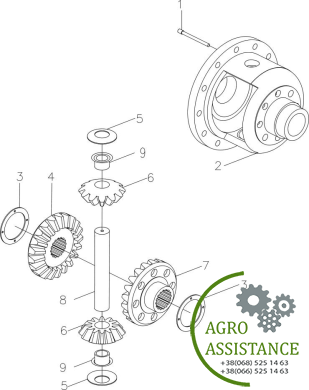

| Диференциал в сборе | Differential assembly | 1.32.430/5117237 | ||
| 1 | штифт | Fixing pin, shaft, planetary gear | 4993655/1.32.428 | 1 |
| 2 | Корпус диференциала | Carrier, differential | 884993581/1.32.404 | 1 |
| 3 | Шайба | Thrust washer, side gear | 4993653/1.32.424 | 2 |
| Thickness1.6 | ||||
| 4993652/1.32.424 | 2 | |||
| Thickness1.5 | ||||
| 5138269/1.32.424 | 2 | |||
| Thickness1.7 | ||||
| 4 | Сотилит | Side gear (RH), differential | 4993577SZ/1.32.413 | 1 |
| 5 | Упорная шайба планетарной передачи | Thrust washer, planetary gear | 4993654/1.32.425 | 2 |
| 6 | Сотилит дифференциала | Pinion, differential | SZ1204.38.415 | 2 |
| 7 | Сотилит | Side gear (LH), differential | 4993576SZ/1.32.414 | 1 |
| 8 | Вал сотилита | Shaft, pinion, differential | 884993572SZ-2/1.32.416 | 1 |
| 9 | Втулка сотилита | Bushing, planetary gear | COB010(38×34×30×30) | 2 |
