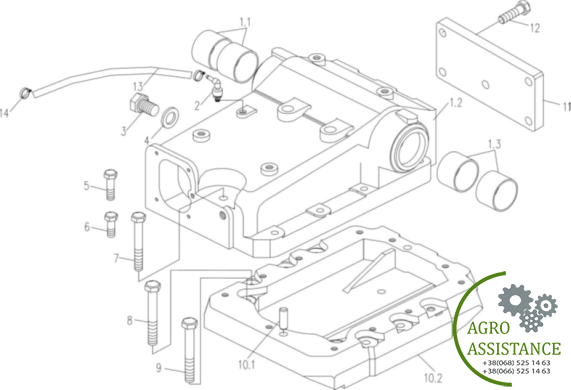

| № | Название | Part Name | Part Numberr | К-во |
| 1 | Корпус подъемника | Lifter housing unit | 5131999/1.82.010A | 1 |
| 1,1 | Втулка | Bushing (RH), Lift shaft | 5108108/1.82.016 | 2 |
| 1,2 | Корпус подъемника | Lifter housing | 5131997/1.82.010 | 1 |
| 1,3 | Втулка | Bushing (LH), Lift shaft | 5117165/1.82.017 | 2 |
| 2 | Клапан | Joint unit, air outlet pipe | SZ1204.58F.015 | 1 |
| 3 | Болт | Plug M22×15, oil dipstick | 10305171/14530 | 1 |
| （Process plug for assembly） | ||||
| 4 | Шайба | Rectangular cross-section seal washer | 10263460/14607 | 1 |
| 22×28×1.5 | ||||
| 5 | Болт | Bolt M12×1.25×45-Zn.D | GB 5785-86 | 7 |
| 6 | Болт | Bolt M12×1.25×35 | 15540521/10312 | 1 |
| 7 | Болт | Bolt M12×1.25×90-Zn.D | GB 5785-86 | 3 |
| 8 | Боолт | Hexagon bold M14×1.5×90 | GB 5785-86 | 6 |
| 9 | Болт | Connecting bolt, housing | 1204.55.117 | 2 |
| 10 | Корпус | Transitional housing with dowel pin | 1 | |
| 10,1 | Штифт | Dowel pin 15×22 | 4985062/1.21.071 | 2 |
| 10,2 | Корпус | Transitional housing, lifter | 1204.55G.102-1 | 1 |
| 11 | Крепление | Stiffener (RR), lifter | 1204.55.115 | 1 |
| 12 | Болт M14 × 1,5 × 35 | Bolt M14×1.5×35 | GB 5786-86 | 5 |
| 13 | Шланг | PVC hose | SG79-74 | 1 |
| 10 × 1 × 1300 | 10×1×1300 | |||
| 14 | Хамут | Clamp 10-16 | JB/T8870-1999 | 2 |
