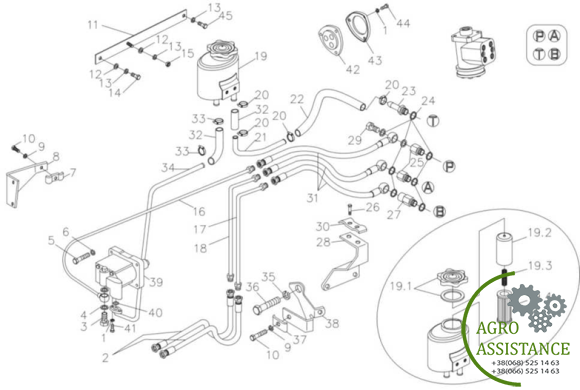

| № | Название | Part Name | Part Numberr | К-во |
| 1 | Шайба 8 | Washer 8 | GB/T93-1987 | 7 |
| 2 | Трубки рулевого гидроцилиндра | Hose assembly, cylinder | SZ804.40.051A | 1 |
| SZ804.40.052A | 1 | |||
| 3 | Штуцер | Hollow bolt | 885105699/1.63 | 1 |
| 4 | Уплатнительное кольцо | Rectangular cross-section seal ring18*24* 1.5 | JB982-77 | 2 |
| 5 | Болт | Bolt M8*30-Zn.D | GB/T5782-2000 | 4 |
| 6 | Гровер | Washer 8-Zn.D | GB/T93-1987 | 4 |
| 7 | Зажим | Oil pipe clamp | 4999554/1.63.583 | 1 |
| 8 | Кранштейн | Support, oil pipe | 5149036/1.63.896 | 1 |
| 9 | Шайба 8 | Washer 6-Zn.D | GB/T7244-1987 | 7 |
| 10 | болт | Bolt M6*14 | GB/T5783-2000 | 2 |
| 11 | Планка | Bracket unit, steering fluid reservoir | SZ804.40.054-2 | 1 |
| 12 | Шайба 8 | Washer 8-Zn.D | GB/T97.1-2002 | 2 |
| 13 | Гровер | Washer 8-Zn.D | GB/T93-1987 | 3 |
| 14 | Болт | Bolt M8*20-Zn.D | GB 5781-86 | 1 |
| 15 | Гайка | Nut M8-Zn.D | GB/T6170-2000 | 1 |
| 16 | Трубка масляного насоса выпускна | Oil pump outlet pipe assembly | 8A5149054SZ/1.63.820 | 1 |
| 17 | Трубка металическая | Steering oil pipe assembly (RH) | 5149056/1.63.871 | 1 |
| 18 | Трубка металическая | Steering oil pipe assembly (LH) | 5149058/1.63.872 | 1 |
| 19 | Масляный бачок рулевого управления | Steering fluid reservoir assembly | SZ804.40.056 | 1 |
| 19.1 | Крышка масляного бачка | Oil tank cap with gasket | 5111699/1.63.841B | 1 |
| 19.2 | Крепление фильтра | Case, filter | 4997991/1.63.857 | 1 |
| 19.3 | щуп | Spring | 5103058/1.63.807 | 1 |
| 19.4 | фильтр | Filter element assembly | 4997992/1.63.858 | 1 |
| 20 | хамут | Hoop 24 | JB3616.1-84 | 4 |
| 21 | трубка | Steering gear oil return pipe assembly(To oil tank) | SZ700.40.017 | 1 |
| 22 | трубка | Oil return pipe, steering gear | SZ804.40.507 | 1 |
| 23 | штуцер | Joint assembly, oil return pipe, steering gear | 885126687/1.63.824 | 1 |
| 24 | шайба | Rectangular cross-section seal ring 21.2*26*2 | 44019496/1.63.898 | 10 |
| 25 | штуцер | Connection, hose, steering gear | 885126686/1.63.877 | 2 |
| 26 | Болт | Bolt M6*22 | GB/T5783-2000 | 3 |
| 27 | штуцер | Connection, hose, steering gear | 885126685/1.63.878 | 1 |
| 28 | кранштейн | Bracket unit | 5149025/1.63.894 | 1 |
| 29 | штуцер | Hollow bolt | 5112983/1.63.881 | 3 |
| 30 | хамут | Oil pipe splint | 880006302/1.63 | 1 |
| 31 | гидравлические рукава | Hose assembly, steering gear | SZ804.40.053 | 3 |
| 32 | трубка | Hose | SZ804.40.505 | 2 |
| 33 | хамут | Hoop 24 | JB3616.1-84 | 4 |
| 34 | трубка | Oil pump inlet pipe assembly | SZ804.40.062 | 1 |
| 35 | гровер | Washer 16-Zn.D | GB/T93-1987 | 1 |
| 36 | болт | Bolt M16*80-Zn.D | GB/T5782-2000 | 1 |
| 37 | пластина | Oil pipe clamp | 5137954/1.63.832 | 1 |
| 38 | кранштейн | Support, oil pipe | 5149037/1.63.583 | 1 |
| 39 | рулевой насос YTO | Steering pump | HLCB-D16/12 | 1 |
| 40 | кольцо | O-ring20.29x2.62 | 14618/14457581 | 1 |
| 41 | болт | Bolt M8*28-Zn.D | GB5786 | 2 |
| 42 | крышка | Pad, hose, steering gear | SZ804.40.501 | 1 |
| 43 | крепление крышки | Flange, hose, steering gear | 5126690/1.63.875 | 1 |
| 44 | болт | Bolt M8*30-Zn.D | GB/T5783-2000 | 3 |
| 45 | Ровер | Screw M8 x20-Zn.D | GB 68-85 | 1 |
